Flash Chromatography Columns: A Comprehensive Overview and Benefits of Santai SepaFlash
Flash chromatography is a popular purification technique used to separate mixtures of compounds quickly and efficiently. It operates at medium pressure (much lower than HPLC) and is widely used in organic synthesis, pharmaceutical research, natural product isolation, and other fields where rapid compound purification is needed. In flash chromatography, compounds are loaded onto a pre-packed flash column containing a solid stationary phase (often silica gel) and are flushed through with solvent under pressure (often using compressed gas or a pump) to achieve separation. This blog post provides an in-depth look at flash chromatography columns, how they differ from traditional HPLC columns, considerations like column volume vs. sample load, and the advantages of high-quality Santai SepaFlash columns – the range of flash columns offered by KNAUER for scientists seeking reliable purification solutions.
Flash Columns vs. HPLC Columns: Key Differences
Flash columns and HPLC (High-Performance Liquid Chromatography) columns are both used for liquid chromatographic separations, but they differ significantly in design and application. Below are some fundamental differences :
- Pressure and Instrumentation: Flash chromatography operates at relatively low to medium pressures (often up to a few dozen bar, e.g. ~10–20 bar), whereas HPLC requires very high pressures (up to thousands of psi, ~300–400 bar or more) for its tightly packed columns. Flash systems often use simple pumps or even pressurized gas to push solvent, in contrast to the sophisticated high-pressure pumps in HPLC. This makes flash systems simpler and lower in cost.
- Particle Size of Media: The stationary phase in HPLC columns typically consists of very small particles (about 3–15 µm in diameter for analytical and preparative HPLC), which provides high separation efficiency. Flash columns use larger silica particles on the order of 25–50 µm. These larger particles produce lower backpressure, allowing faster flow rates and the use of simpler equipment, at the cost of some efficiency. The resolution in flash is lower than HPLC, but often sufficient for purification needs.
- Column Dimensions and Format: HPLC columns are usually narrow and longer (e. g. 4.6 mm inner diameter, 100–250 mm length for analytical columns) and made of stainless steel to withstand high pressure. Flash columns, by contrast, are short, wider-bore cartridges (often 1–3 cm in diameter for standard lab-scale flash) made of polypropylene or similar plastics. The wider diameter allows loading larger sample amounts, which is crucial for preparative work (flash columns are commonly used to purify tens of milligrams up to multiple grams of material in one run). The trade-off is that flash columns usually have fewer theoretical plates (lower separation efficiency) than HPLC columns, but they excel in throughput.
- Material and Reusability: Because of the lower pressure requirements, flash columns are constructed from cost-effective plastics (polypropylene or polyethylene housings) rather than thick steel. They are typically pre-packed, disposable cartridges intended for one-time or few-time use. HPLC columns, on the other hand, are expensive and built for repeated use; they often require maintenance (flushing, reconditioning) to prolong their lifespan. The disposable nature of flash columns simplifies workflows – you simply replace the cartridge for each new purification – while stainless steel HPLC columns are carefully reused until performance degrades.
- Application Focus: In practice, flash chromatography is favored for rapid purification of relatively large amounts of material when ultra-high resolution is not required for every component. It is a workhorse in synthetic organic chemistry labs for post-reaction cleanup, fractionation of natural extracts, etc. HPLC is often used when higher resolution is needed (e.g. separating very similar compounds, obtaining analytical-quality separation, or preparative separations that demand high purity of target), albeit usually handling smaller sample sizes due to the capacity limits. In many cases, flash chromatography is a more practical and economical choice for routine purification tasks, whereas HPLC might be reserved for final polishing or analysis. Both techniques rely on the same chromatographic principles, but flash trades some efficiency for speed and scale, aligning with its role in many labs as a quick purification method.
Column Volume and Sample Loading Considerations
One critical aspect in flash chromatography is selecting the appropriate column size for a given sample and understanding the relationship between column volume and sample load. Overloading a flash column (putting too much sample relative to the column’s capacity) can lead to poor separation (overlapping peaks, reduced purity), while under-utilizing a column is inefficient. Here are some guidelines and insights on volume and loading:
- Column Volume (CV): The internal volume of a flash column (often measured in milliliters) is roughly the volume in which the stationary phase is packed plus pore space. For example, a 4 g silica flash column typically has a volume of around 6 mL. Column volume is directly related to how much solvent it holds and how much sample it can process in a single run.
- Sample Injection Volume: When loading a dissolved sample (liquid injection), the volume of the injection should be kept small relative to the column volume. A general rule is to not exceed about 1–3% of the column’s volume per injection. If too large a volume of sample solution is injected, it can cause band broadening and premature elution due to the solvent displacing the stationary phase interactions. For instance, one study found that injection volumes above ~3% of the column volume led to noticeable peak broadening and loss of resolution. Thus, using a concentrated sample or a dry loading technique (see below) is often preferable for large sample masses.
- Sample Load (Mass): Flash columns are often labeled by the weight of silica they contain (e.g. 4 g, 12 g, 40 g, etc.), and their loading capacity is typically expressed as a percentage of that media weight. How much sample (in terms of mass) can be loaded depends on the complexity of the mixture and the desired purity. For normal-phase silica columns (the most common flash columns), a rough guideline is that you can load about 5–10% of the silica weight with a typical mixture without significantly compromising separation. In very favorable cases (easy separations where compounds are very well-resolved), loadings up to ~20% of the column media weight are possible as an upper maximum. On the other hand, difficult separations (closely eluting compounds) might only allow ~1% of media weight or even less to maintain adequate resolution.
- Normal-Phase vs. Reversed-Phase Capacity: It’s important to note that reversed-phase flash columns (e.g. C18-silica flash cartridges) have a lower sample capacity than bare silica columns. Bonded phases like C18 offer less surface area for adsorption (since a portion of the silica surface is covered by the hydrophobic groups) and operate by a different mechanism. Typical published loading capacities for C18 flash columns are only about 1–2% of the media weight (much lower than the 10%+ possible on silica). In other words, a 40 g C18 flash column might effectively purify only ~0.4–0.8 g of sample in one run, whereas a 40 g normal-phase silica column could handle several grams if the separation is easy. This is a key consideration when choosing column type and size for your application.
- Dry Loading vs. Liquid Loading: To maximize the amount of sample that can be applied without overloading the column volume, chemists often use dry loading techniques. This involves adsorbing the sample onto a small amount of inert solid or silica, then filling that solid into a cartridge (or atop the column) so that when the solvent flows, the sample is released and begins separating immediately. Dry loading avoids a large solvent plug and can help when dealing with large sample masses or when the sample is not very soluble. Many flash column systems allow use of empty dry load cartridges or special designs for this purpose. (For example, Santai’s iLOK series columns are designed to facilitate either direct liquid injection or solid sample loading in a convenient way.) If injecting in liquid form, using the smallest feasible volume (with a suitable solvent) is advised to stay within that ~3% CV injection guideline.
To illustrate these loading concepts, the table below provides typical ranges of sample loading capacity for various flash column sizes. These ranges assume a normal-phase silica column and medium difficulty separation (for very easy separations, the higher end or beyond may be possible; for very difficult ones, the lower end applies):
Flash Column Size (Silica) | Approx. Column Volume (mL) | Typical Sample Load Range (mass) |
4 g silica column | ~6 mL | ~0.04 g – 0.4 g (40–400 mg) |
12 g silica column | ~18 mL (est.) | ~0.12 g – 1.2 g (120–1200 mg) |
25 g silica column | ~40 mL (est.) | ~0.25 g – 2.5 g |
40 g silica column | ~60 mL (est.) | ~0.4 g – 4 g |
80 g silica column | ~120 mL (est.) | ~0.8 g – 8 g |
220 g silica column | ~330 mL (est.) | ~2.2 g – 22 g |
330 g silica column | ~500 mL (est.) | ~3.3 g – 33 g |
Table: Examples of flash column sizes and their typical sample loading capacity. Lower values in the range (~0.1% of media weight) would be used for very difficult separations requiring high purity, whereas the upper values (~10% of media weight) can be used for easier separations. These guidelines apply to normal-phase silica columns; reversed-phase columns would have much lower capacity (roughly one-tenth of the above, see text).
As seen above, a larger flash column can handle proportionally more sample. Choosing the right size thus depends on the amount of material you need to purify and how well-resolved you expect the separation to be. It’s often wise to choose a slightly larger column if high purity is needed, because loading less per column will give better separation. Conversely, for crude purifications where some loss of resolution is acceptable, you might push toward the higher end of loading to save time and solvent. Flash chromatography’s strength is that it offers a lot of flexibility in scaling – you can quickly swap to a bigger column if you have more sample, or use a smaller one for speed when purifying just a few milligrams.
Advantages of Santai SepaFlash Columns (Offered by KNAUER)
When it comes to flash columns, not all are created equal. The Santai SepaFlash columns, which KNAUER proudly offers, stand out due to their quality of materials and clever design features. Santai Science (based in Montreal, Canada) specializes in flash chromatography systems and consumables, and their SepaFlash column line has earned an excellent reputation among chemists. Here we highlight some key advantages of these columns for scientific users:
- High Purity Silica and Consistent Performance: SepaFlash columns are packed with UltraPure silica gel that has a tight particle size distribution and low level of fines (dust-like particles). This means the packing is very uniform and stable, leading to sharp peaks without tailing. The silica is neutral in pH with controlled water content, which improves reproducibility and avoids variability between batches. In practice, users find that Santai columns give reproducible results with excellent resolution run-to-run. In fact, Santai’s proprietary packing technique and quality control ensure “lot-to-lot” reproducibility that has been a point of pride since 2004.
- Robust, Leak-Free Cartridges: The columns are built in clean, pre-packed polypropylene cartridges that are pharmaceutical-grade. The hardware is designed to be 100% leak-free under recommended operating pressures. This is important for safety and for avoiding any loss of sample or solvent during a run. The use of biocompatible plastics (PP) means no metal contamination and compatibility with a wide range of solvents. These cartridges are ready to use out of the box, which saves time and ensures consistency (no need for the user to pack their own column).
- Pressure Range and Performance Options: While standard flash columns operate at relatively low pressures, Santai offers different series of SepaFlash columns to cover various performance needs. The SepaFlash HP series (high-pressure series) can be used up to 400 psi (≈28 bar), allowing faster flow rates or the use of smaller particles for higher separation efficiency when needed. This bridges the gap towards preparative HPLC, enabling users to tackle more challenging separations on a flash platform. At the same time, the standard series flash columns are rated up to ~300 psi (20 bar), giving a comfortable safety margin for typical normal-phase work. The columns are securely spin-welded (for the HP series), meaning the end-fittings are durably attached to handle higher pressure.
- Flexible Loading Methods (iLOK Series): Santai has also innovated in sample loading convenience. The SepaFlash iLOK™ series columns are a special design that allows users to easily open and re-use the column cartridges for manual packing or different loading techniques . With iLOK, one can either load samples as a dry solid (by filling a removable cartridge with a sample-adsorbed sorbent) or inject liquids directly, using the same column hardware. This flexibility is a boon for those who frequently switch between dry loading (for larger, less soluble samples) and liquid injection. It effectively combines two functions in one product, reducing the need for separate loading cartridges.
- Versatility and Compatibility: SepaFlash columns come in a wide range of sizes and chemistries to suit many purification tasks. In addition to the normal silica columns, Santai offers bonded-phase columns (e. g. C18, C8, amino, etc. in the Bonded Series) for reverse-phase or specialty separations, as well as specialty media (for example, a Cannabis Series tailored for cannabinoid purification ). This means scientists can perform both normal-phase and reversed-phase flash chromatography using the same line of columns. Moreover, the Santai columns are universally compatible with all major flash chromatography instruments on the market. They use standard Luer-type connectors for sizes up to ~330 g, and larger columns come with adaptors if needed. Whether one is using a Biotage™, Teledyne ISCO™ CombiFlash, Buchi Sepacore™, or other system, the SepaFlash cartridges will fit seamlessly. This drop-in compatibility allows laboratories to take advantage of Santai column performance without having to invest in new equipment.
- Cost-Effective Quality: Despite their high quality, Santai flash columns are often more affordable than other brand-name flash cartridges, providing cost savings without sacrificing performance. Testimonials from users have noted that these columns are “effective at a great price” and deliver separations on par with more expensive alternatives. For budget-conscious labs, KNAUER’s offering of Santai columns represents a high-value choice – you get premium results for a reasonable cost. Additionally, less fines and better packing mean columns last for the intended run without issues, avoiding waste.

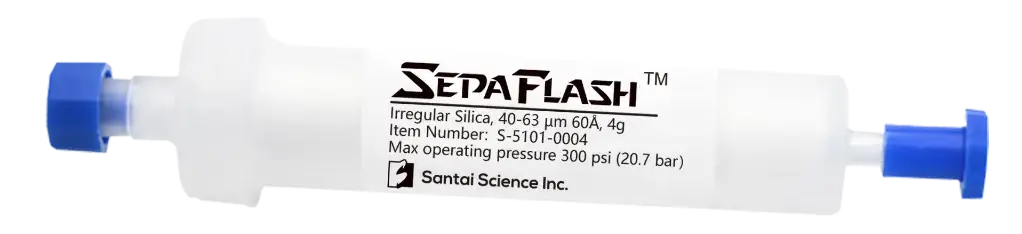

A Santai SepaFlash pre-packed flash column (4 g size). These disposable polypropylene cartridges are filled with high-purity silica and feature Luer-lock connectors for easy setup. They are compatible with common flash chromatography systems and designed for single or few-use purification runs.
In summary, the Santai SepaFlash columns provided by KNAUER combine the scientific reliability that researchers demand with the practical convenience needed for routine use. High-quality stationary phase, robust cartridge design, and thoughtful features like flexible loading options all contribute to making purification work more efficient and reproducible.
Conclusion
Flash chromatography columns are indispensable tools for many scientists, enabling the rapid separation of compounds on scales from milligrams to tens of grams. Compared to HPLC columns, flash columns offer a trade-off favoring speed, simplicity, and load capacity at the expense of some resolution – a balance that is often ideal for preparative purifications in research and development. Understanding how to choose the right column, how much sample to load, and how to operate within the optimal volume ratio are key for successful flash separations.
By choosing quality flash columns such as the Santai SepaFlash series distributed by KNAUER, scientists can further enhance their purification workflows. These columns bring advantages in consistency, versatility, and compatibility that translate to better separation performance and ease of use in the lab. In a formal scientific context, leveraging well-designed flash columns means more confidence in reproducing results and isolating target compounds efficiently. KNAUER’s offering of Santai flash columns exemplifies how modern flash chromatography technology can meet rigorous scientific needs – delivering fast, reliable, and high-capacity separations that keep your research moving forward. Whether you are distinguishing flash from HPLC in a teaching lab or pushing the limits of flash systems for complex mixtures, having the right columns on hand will ensure you always get the best results in your purification challenges.
References:
- Chrom Tech Inc., Flash Chromatography Explained: A Comprehensive Guide (2024) – Differences between flash and HPLC columns.
- Santai Science, SepaFlash Flash Columns – Product Advantages (2024) – Features of Santai SepaFlash columns (ultra-pure silica, tight particle size, controlled water content, etc.).
- Biotage Blog, B. Bickler, What is the Maximum Flash Column Sample Load Volume? – Guidance on injection volume (≤3% of column volume) for flash chromatography.
- Biotage Blog, B. Bickler, What is my C18 Flash Column’s Loading Capacity? – Loading capacity of normal-phase vs. C18 flash columns (up to 10–20% vs. ~1–2% of media weight).
- Velocity Scientific (Santai distributor), SepaFlash Standard Series Flash Columns – Specifications – Table of column sizes, volumes, and sample loading ranges for Santai columns.
- KNAUER Web Store – SepaFlash Column 4 g – Example technical data for a 4 g flash column (6 mL volume, 4–400 mg sample load, 20 bar max).
- Santai Science – Company information (Montreal-based manufacturer of flash chromatography systems and columns).
“Santai flash columns: proven performance, exceptional value.”
Are you working with flash chromatography and flash columns? If your answer is yes, then give the Santai SepaFlash flash columns a try. They deliver the best value for your money.
