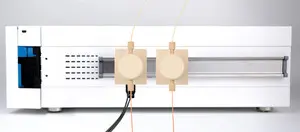

Biocompatible Pressure Control Set (1/16'', 1/8'')
for measuring a pressure difference
The pressure sensors can be integrated flexibly into your AZURA LC System. The use of two biocompatible pressure sensors offers the possibility of differential pressure measurement over the column. If the delta pressure exceeds the preset limit during the run, it will either pause the run, lower the flowrate or trigger another action. The pressure traces are logged as data trace in the PurityChrom® software.
- Set contains two pressure sensors and interface box
- Wetted parts are fully biocompatible
- 1/16’’ and 1/8’’ tubings can be connected
Internal Reference:
AZG10
Technical Data
| General | |
|---|---|
| Pressure Sensor Pressure Range | 0-100 bar |
| Specifications | |
|---|---|
| Sensor Flow Rate | 0-250 ml/min |
| GMP Relevant | |
|---|---|
| Pressure Sensor Material | PEEK and Ceramic |
| Form & Fit | |
|---|---|
| Pressure Sensor Connection | 1/16'' or 1/8'' |
