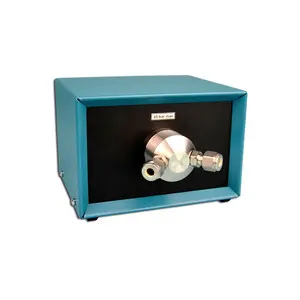

External Pressure Sensor 1/8" LAN
0-50 bar, PEEK, ceramic, PurityChrom only
The external pressure sensor enables you to record an additional pressure trace with your chromatogram, in order to protect your column and your system from over pressure. By being able to place extra pressure sensors into the system, you can ensure to keep the pressure in the right range at all times and especially at the point of need.
The maximum flow rate is 1000 ml/min with a pressure range between 0 and 50 bar and an accuracy of +/- 0.1 bar.
Internal Reference:
AZG10-5
Technical Data
| General | |
|---|---|
| Pressure Sensor Pressure Range | 0-50 bar |
| Specifications | |
|---|---|
| Sensor Flow Rate | 100-1000 ml/min |
| GMP Relevant | |
|---|---|
| Pressure Sensor Material | PEEK and Ceramic |
| Form & Fit | |
|---|---|
| Pressure Sensor Connection | 1/8" |
