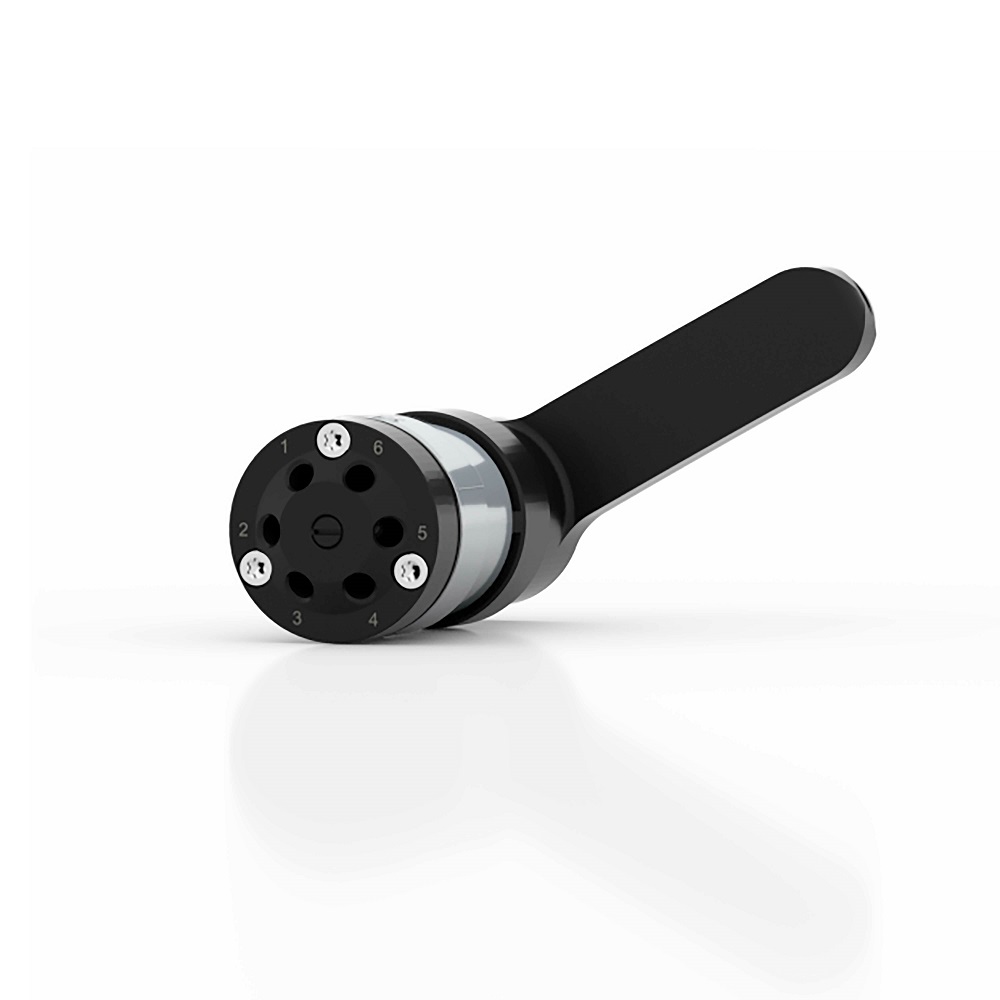

AZURA® V 4.1 Valve, Manual 6Port 2Pos, 100 bar, 1/8" 1/4-28 UNF coned, 2 mm bore size, PEEK/PEEK

AZURA® V 4.1 Valve, Manual 6Port 2Pos, 100 bar, 1/8" 1/4-28 UNF coned, 2 mm bore size, PEEK/PEEK

https://store.knauer.net/web/image/product.template/63339/image_1920?unique=0b7440d

Manual valve for preparative applications like sample injection or column selection. PEEK HPV stator and PEEK TX rotor seal.

The stator of this manual injection valve is made of PEEK HPV. In combination with a PEEK TX rotor seal the valve offers high durability and a pressure resistance of up to 100 bar.

  • Valve Function
  • Valve Function
  • Valve Model
  • Operated
  • Valve Material
  • Valve Port Number
  • Valve Positions
  • Valve Capillary Connection
  • Valve Max. Pressure
  • Bore Size
  • Stator Material
  • Rotor Material
  • Thread

This combination does not exist.

Contact Us

Terms and Conditions
Images may differ from the actual product.

Share

Internal Reference: AVL23CE

Technical Data

General
Valve Function Injection, Column selection
Valve Model V 4.1
Operated Manual
Valve Material Biocompatible
Specifications
Valve Port Number 6
Valve Positions 2
Valve Capillary Connection 1/8"
Valve Max. Pressure 100 bar
GMP Relevant
Stator Material PEEK
Rotor Material PEEK
Form & Fit
Bore Size 2.0 mm
Thread UNF 1/4-28
