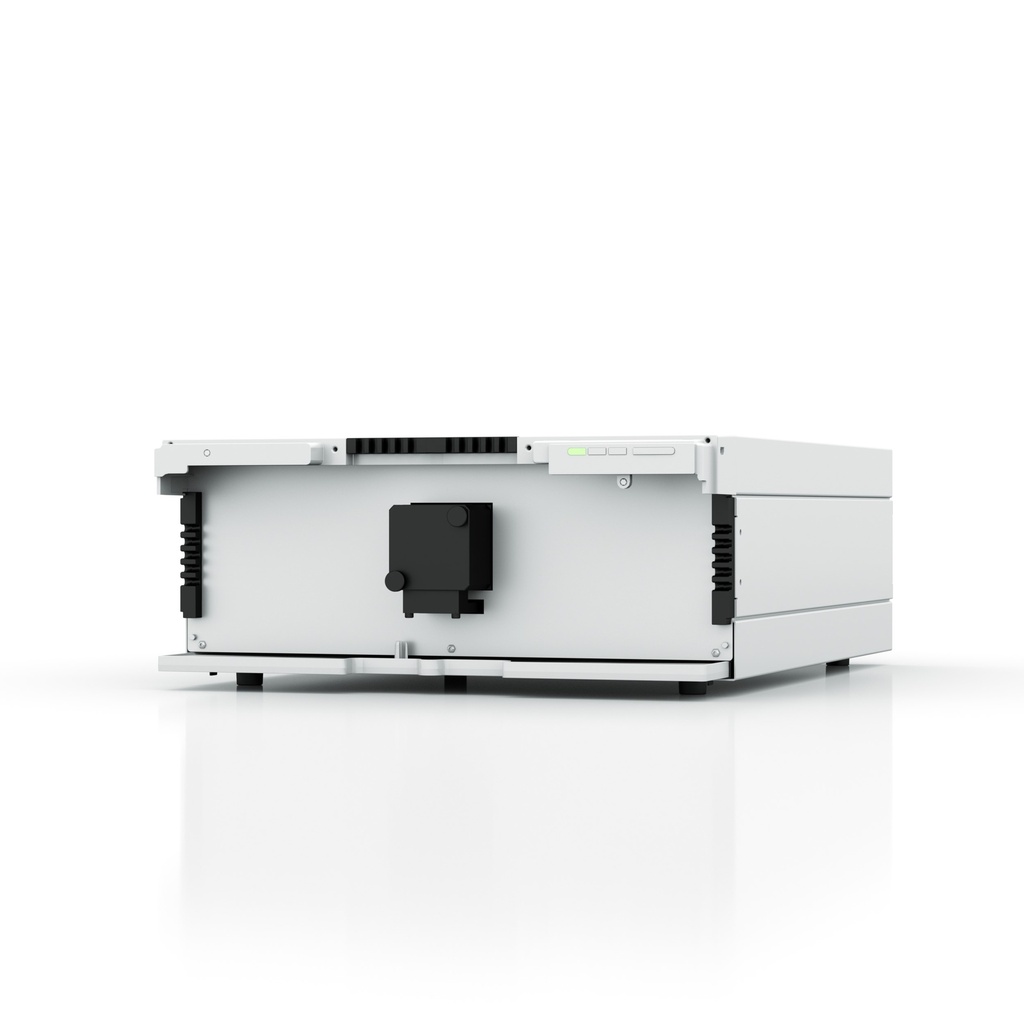

AZURA® UVD 2.1L UV/VIS Detector
with Test Cell, without Flow Cell, 190-750 nm
The KNAUER AZURA® UVD 2.1L UV/VIS Detector is a competitively priced HPLC spectrophotometer designed for routine HPLC applications, including fast LC methods. It is equipped with a deuterium lamp that covers a wavelength range from 190 to 750 nm. This robust detector not only offers excellent technical specifications but also features a highly flexible and compact design.
Due to the detector’s smart design, the flow cell is easily accessible and can thus be changed very quickly. Users can choose from a wide range of flow cells with either bio-inert or stainless-steel wetted parts, suitable for both analytical and preparative LC applications, with flow rates ranging from 10 μl/min to 10 l/min.
The UVD 2.1L can be controlled using ClarityChrom®, OpenLAB®, Chromeleon™, ChromGate® and PurityChrom® software, as well as Mobile Control software for stand-alone operation. Control can be achieved via LAN or through analog input/output, allowing for seamless integration into almost any LC system.
Internal Reference:
ADA01XA
Technical Data
| General | |
|---|---|
| Detector Type | Variable single wavelength UV detector |
| Detection Channels | 1 |
| Wavelength Range | 190-750 nm |
| Light Source | Deuterium (D₂) lamp with integrated GLP chip |
| Flow Cell | Not included |
| Display | Mobile Control (optional) |
| Specifications | |
|---|---|
| Wavelength Accuracy | ± 2.5 nm |
| Wavelength Precision | 0.3 nm (ASTM E275-93) |
| Features | |
|---|---|
| Leak Sensor | Yes |
| GLP Report | Lamp recognition, Operating hours, Light source operating hours, Number of lamp ignitions |
| Specification - Detection | |
|---|---|
| Spectral Bandwidth | 11 nm at Hα line (FWHM) |
| Baseline Noise Level (Test Cell, 254 nm, ASTM E1657-98) | ± 15 µAU |
| Drift (254 nm, ASTM E1657-98) | 300 µAU/h |
| Linearity (274 nm, ASTM E1657-98) | > 2.0 AU |
| Max. Data Rate | 50 Hz (LAN) / 20 Hz (analog) |
| Time Constants | 0.1 / 0.2 / 0.5 / 1.0 / 2.0 / 5.0 / 10.0 s |
| Integration Time | Automatic |
Find product specifications here
