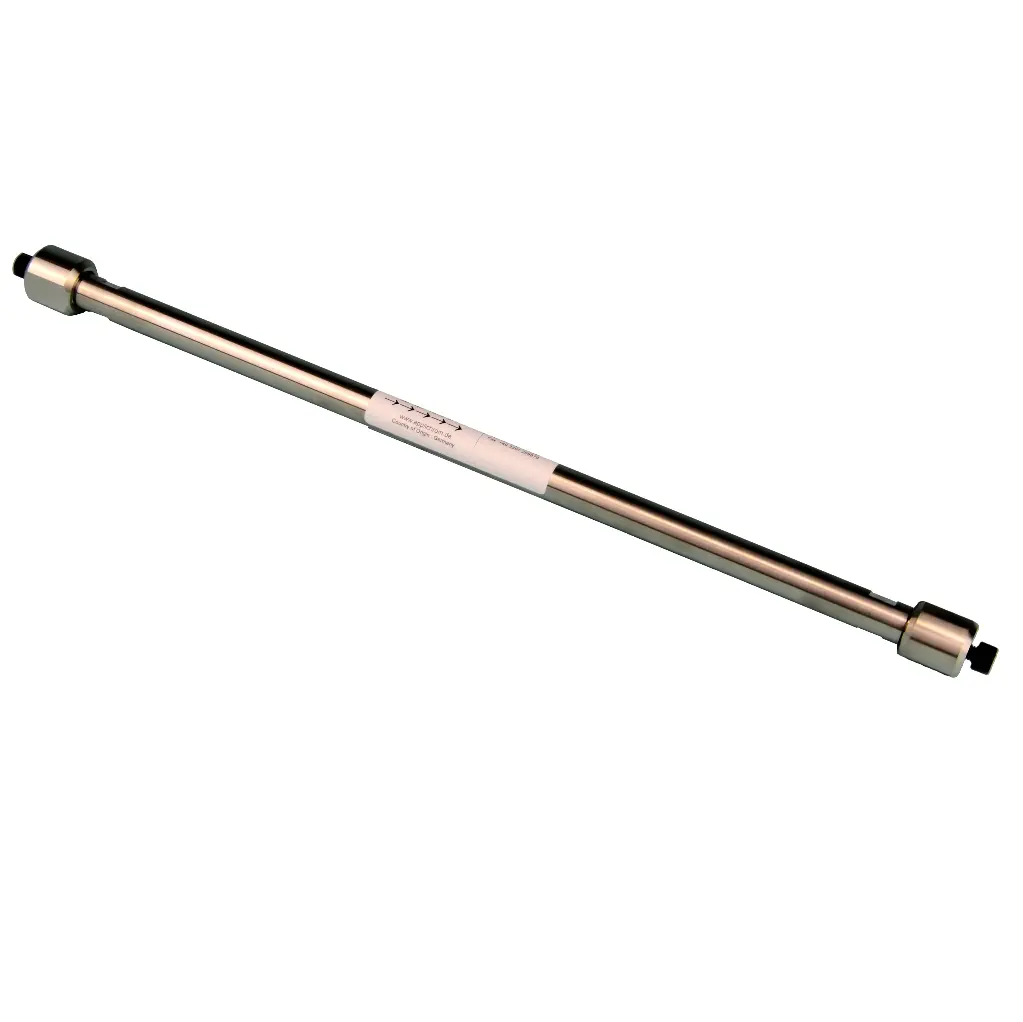

AppliChrom StyDiViBe-P-10E6A-BPT, GPC Column, 10 000 Å, 5 or 10 µm, 300 x 8 mm, separation range 100 Da-4 Mio Da

AppliChrom StyDiViBe-P-10E6A-BPT, GPC Column, 10 000 Å, 5 or 10 µm, 300 x 8 mm, separation range 100 Da-4 Mio Da

https://www.knauer.net/web/image/product.template/88949/image_1920?unique=7995698

For high performance, interaction free GPC with rigid, fully porous styrenedivinylbenzene copolymer. Higly pressure stable and robust.

GPC columns for GPC analysis of organic molecules with THF, toluene, chloroform

Organic polystyrene-divinylbenzene copolymer base material with high porosity for high resolution

Properties
High pressure stability up to 150 bar and temperatures between 10-145 °C. Low column bleed for low detector noise and highest reproducibility.

Key features
High purity polymer phase to eliminate adsorptive effects and combine pure GPC with long lifetime. Large calibration ranges for several decades due to the unique process of BPT technology. Range of individual porosities that can be used individually or in combination.

Recommended eluents
THF, Toluene, CHCl₃, dichlorbenzene, hexane/EtOAc (10:90, V:V)

Recommended application areas
Hydrophobic oligomers or polymers like PVC, PMMA, polystyrene, epoxy resins, polyesters, bisphenol A resins

1,844.00 € 1844.0 EUR 1,844.00 € Tax Excluded

  • Brand
  • Units per Package
  • Includes
  • Column Separation Mode
  • Column Base Material
  • Endcapping
  • Column Separation Range
  • Capillary Connection
  • Housing Material
  • Column Length
  • Column Inner Diameter
  • Column Particle Size
  • Column Particle Size
  • Column Pore Size
  • USP Code
  • pH Range
  • Eluent Recommendation

This combination does not exist.

Contact Us

Terms and Conditions
Images may differ from the actual product.

Share

Internal Reference: 30G647KABN

Technical Data

General
Brand AppliChrom® StyDiViBe-P
Units per Package 1
Includes Column
Column Separation Mode GPC (Gel Permeation Chromatography)
Column Length 300 mm
Column Inner Diameter 8 mm
Column Particle Size 5 µm, 10 µm
Column Pore Size 10000 Å
Specifications
Column Base Material Rigid, spherical styrene divenylbenzene copolymer (DVB)
Endcapping No
Column Separation Range 100 Da - 4 MioDa
Capillary Connection 1/16"
Housing Material Stainless Steel (SST)
USP Code L21
pH Range 1-14
Eluent Recommendation THF, toluene, chloroform ...
