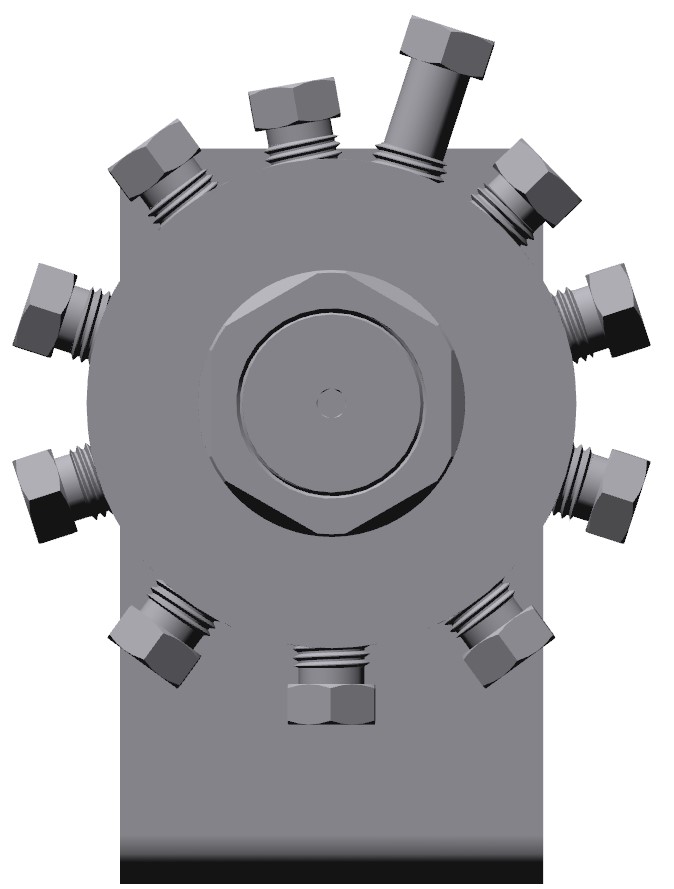

VICI/VALCO Schaltventil 10MPos mit 1/4" Anschluss, Edelstahl 2" Standoff Niederdruckventil 6.8 bar inkl. 10 m Schlauch (1/4" AD, 4,75 mm ID PTFE), 11 Verschraubungen, 11 Ferrulen
Automated valve for applications like column, eluent or sample selection and fraction collection. Nitronic 60 stator and Valcon E rotor seal.
This valve is used in combination with the electrical VICI actuator.Multiposition valves are ubiquitous in HPLC and UHPLC applications. They act like a switch and can control the flow path of the chromatography system in various ways. The stator of this automated multiposition valve is made of Nitronic 60. In combination with a Valcon E rotor seal the valve offers high durability and a pressure resistance of up to 6,8 bar. This valve is best suited for preparative applications and has 10 ports. The standoff of the valve allows the valve to be mounted in a differently tempered zone e.g. in a heated zone while the actuator remains at ambient temperature.
Interne Referenz:
A5866
Technische Daten
| Allgemein | |
|---|---|
| Ventilfunktion | Säulenauswahl, Eluentenauswahl, Probenauswahl, Fraktionssammlung |
| Ventilmodell | VICI |
| Bedienung | Elektrisch durch Vici-Aktuator |
| Ventilantrieb | Enthalten |
| Ventilmaterial | Rostfreier Stahl (SST) |
| Spezifikationen | |
|---|---|
| Ventilport Anzahl | 10 |
| Ventilpositionen | Multiposition |
| Kapillaranschlüsse im Ventil | 1/4" |
| Max. Druck im Ventil | 6.8 bar |
| GMP Relevant | |
|---|---|
| Statormaterial | Nitronic 60 (SST) |
| Rotormaterial | Valcon |
| Geometrie & Passform | |
|---|---|
| Bohrungsgröße | 4.0 mm |
| Gewinde | UNF 7/16-20 |
Finde alle Produktspezifikationen hier
