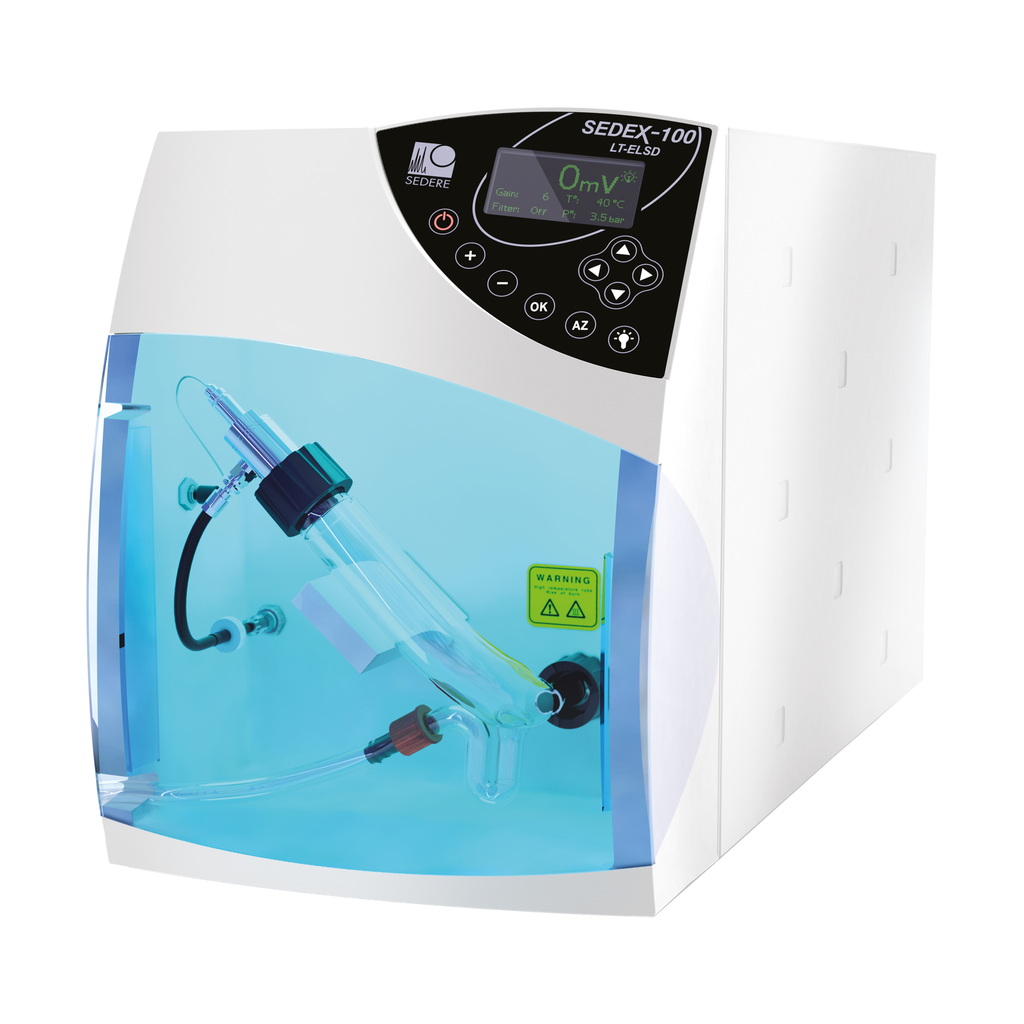

SEDEX LT-ELSD 100LT Low-Temperature Evaporative Light-Scattering Detector, HPLC Nebulizer

The SEDEX LT-ELSD 100LT is an advanced evaporative light scattering detector known for its unmatched sensitivity, reliability, and accuracy in detecting various compounds (carbohydrates, proteins, peptides, polymers, lipids, steroids, etc.), regardless of their fluorescence, absorption or refractive-index characteristics. This detector utilizes cutting-edge low-temperature evaporation technology and features a state-of-the-art optical head equipped with a new laser. Along with an innovative evaporation drift tube design, these features enhance both efficiency and sensitivity. The technology is compatible with gradients and is not affected by the absorption characteristics of eluents.

Key benefits include:

• Low-temperature evaporation of the mobile phase: This feature optimizes sensitivity for thermally labile and semi-volatile compounds.
• Innovative optical head design: This provides the highest signal-to-noise ratio for all compounds.
• Digital signal treatment: An innovative signal processing algorithm reduces noise and boosts sensitivity.
• Complete Remote Control: The gas, heater, photo-detector and light source can be automatically turned off after a series of analyses, ensuring longevity and increasing the system’s lifespan.
• Direct dynamic range of over five orders of magnitude: This allows for better determination of very low percentages of impurities.

The SEDEX LT-ELSD 100LT can be easily integrated into almost any HPLC system, since it can be controlled locally via the keypad and display or remotely via USB using drivers for various CDS software packages, including ClarityChrom®, OpenLAB® or Chromeleon™. Detailed SOP protocols for GLP compliance and validation procedures are available.

This model is equipped with a nebulizer for HPLC applications, covering a flow rate range of 200 µl/min to 2.0 ml/min. However, also other nebulizers, each specifically optimized for UHPLC or SFC applications, are available.
