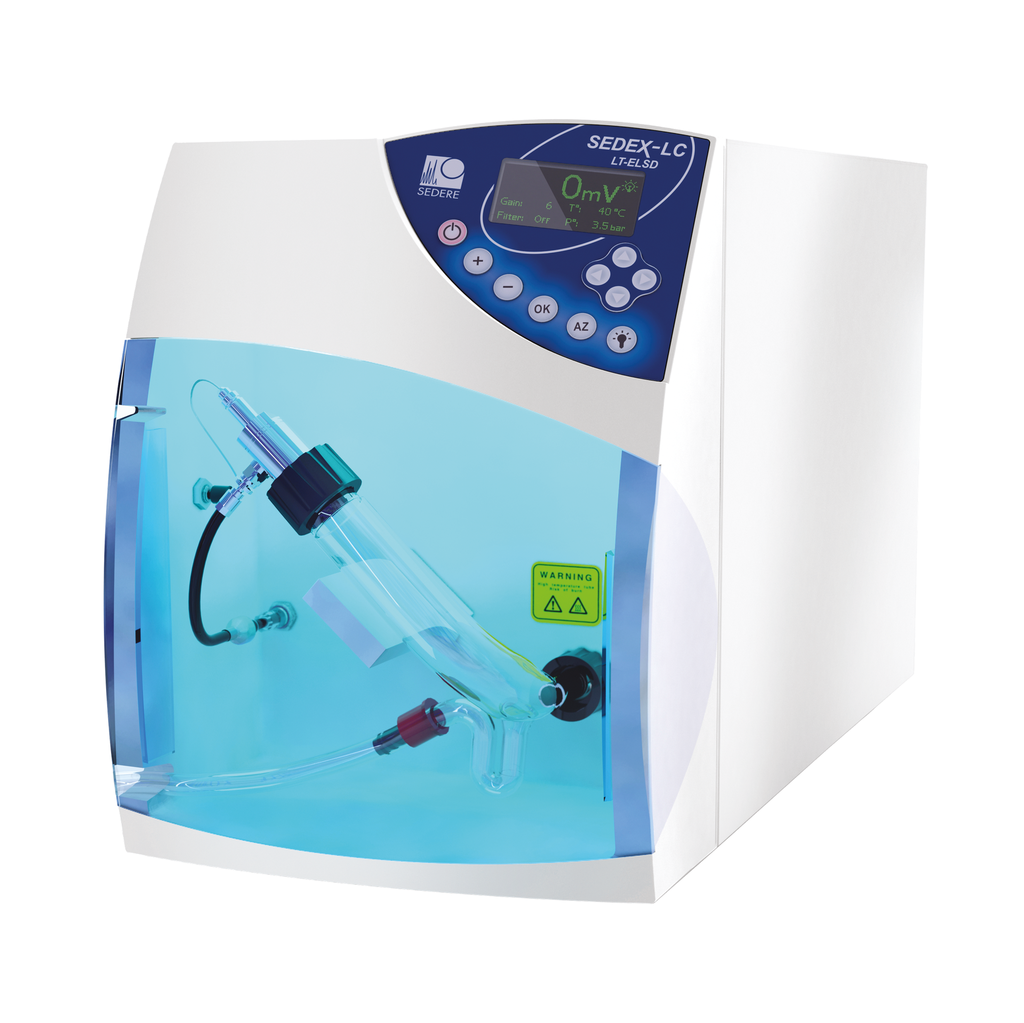

SEDEX LT-ELSD LC Low-Temperature Evaporative Light-Scattering Detector, HPLC Nebulizer

The SEDEX LT-ELSD LC is an evaporative light scattering detector that offers unprecedented fidelity, sensitivity and accuracy in detecting various compounds (carbohydrates, proteins, peptides, polymers, lipids, steroids, etc.), regardless of their fluorescence, absorption or refractive-index characteristics. This detector utilizes cutting-edge low-temperature evaporation technology and combines innovative features to provide superior optical and electronic performance at a competitive price. It is specifically suited for standard liquid chromatography. Take advantage of the SAGA (SEDEX Automated Gain Adjustment) system that will automatically adjust the gain to prevent the detector from saturating and going off-scale. The ELSD technology is compatible with gradients and is not affected by the absorption characteristics of the eluents.

Key benefits include:

• Low-temperature evaporation of the mobile phase: This feature optimizes sensitivity for thermally labile and semi-volatile compounds.
• Innovative SAGA technology: Automatically adjusts the gain setting to prevent any off-scale saturation.
• Complete Remote Control: The gas, heater, photo-detector and light source can be automatically turned off after a series of analyses, ensuring longevity and increasing the system’s lifespan.
• Single, dedicated nebulizer and innovative cell design: Help minimize band broadening.

The SEDEX LT-ELSD LC can be easily integrated into almost any HPLC system, since it can be controlled locally via the keypad and display or remotely via USB using drivers for various CDS software packages, including ClarityChrom®, OpenLAB® or Chromeleon™. Detailed SOP protocols for GLP compliance and validation procedures are available.

This model is equipped with a dedicated nebulizer for HPLC applications, covering a flow rate range of 200 µl/min to 2.0 ml/min.
