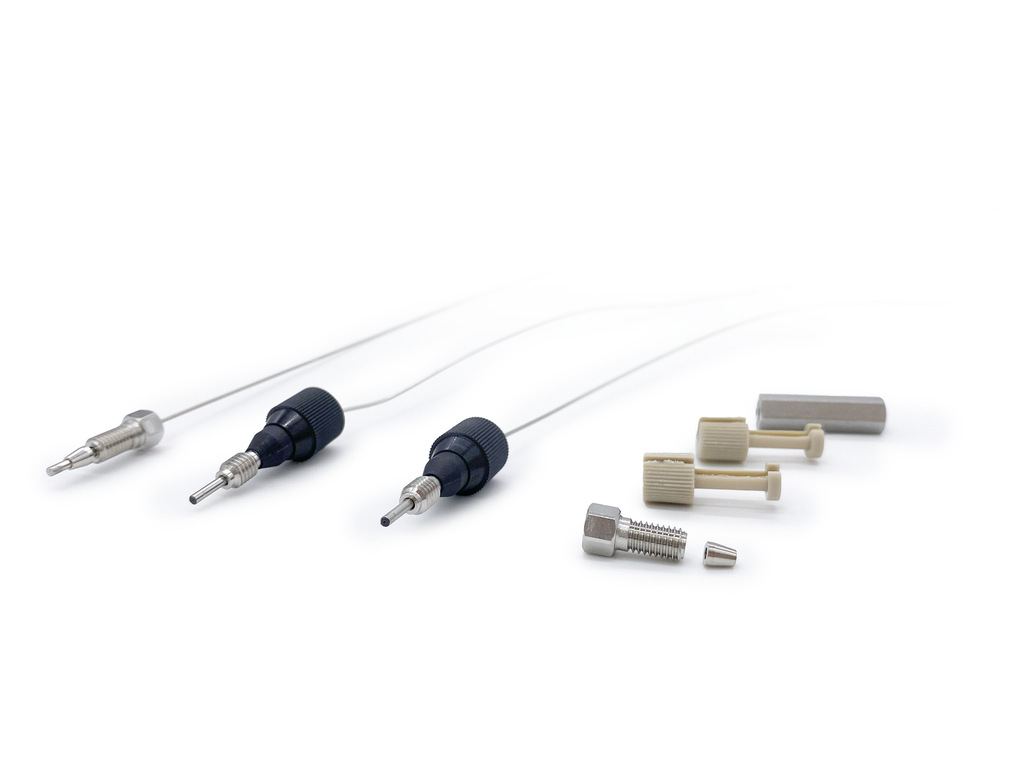

Azura Analytical MarvelXACT™ StartUp kit for HPLC Set of capillaries, adapters and connectors
For KNAUER AZURA Analytical HPLC 862 bar systems
The AZURA Analytical Trouble-free StartUp Kit contains:
1 capillary 600 mm length, 0.254 mm ID incl. fittings for connection of pump and autosampler
1 capillary 600 mm length, 0.125 mm ID incl. fittings for connection autosampler and column (for columns up to 300 mm length)
1 capillary 500 mm length, 0.125 mm ID incl. fittings for connection of column and detector
1 capillary 900 mm length, 0.18 mm ID incl. fittings for connection of pump and autosampler for all systems with 2 AZURA L detectors or benchtop installation
1 Connector UNF 10/32 - UNF 10/32 stainless steel
5 adapters for AZURA L-devices capillary guidance
1 capillary 600 mm length, 0.254 mm ID incl. fittings for connection of pump and autosampler
1 capillary 600 mm length, 0.125 mm ID incl. fittings for connection autosampler and column (for columns up to 300 mm length)
1 capillary 500 mm length, 0.125 mm ID incl. fittings for connection of column and detector
1 capillary 900 mm length, 0.18 mm ID incl. fittings for connection of pump and autosampler for all systems with 2 AZURA L detectors or benchtop installation
1 Connector UNF 10/32 - UNF 10/32 stainless steel
5 adapters for AZURA L-devices capillary guidance
Internal Reference:
AZF120
Technical Data
General | |
---|---|
Product Type | Kit, Capillary |
Specifications | |
---|---|
Capillary Material | Stainless Steel |
Capillary Connection | 1/16" |
Thread | UNF 10-32 |
Capillary Length | 500 mm, 600 mm, 900 mm |
Maximum Pressure | 862 bar |
Inner Diameter | 0.125 mm, 0.18 mm, 0.254 mm |
