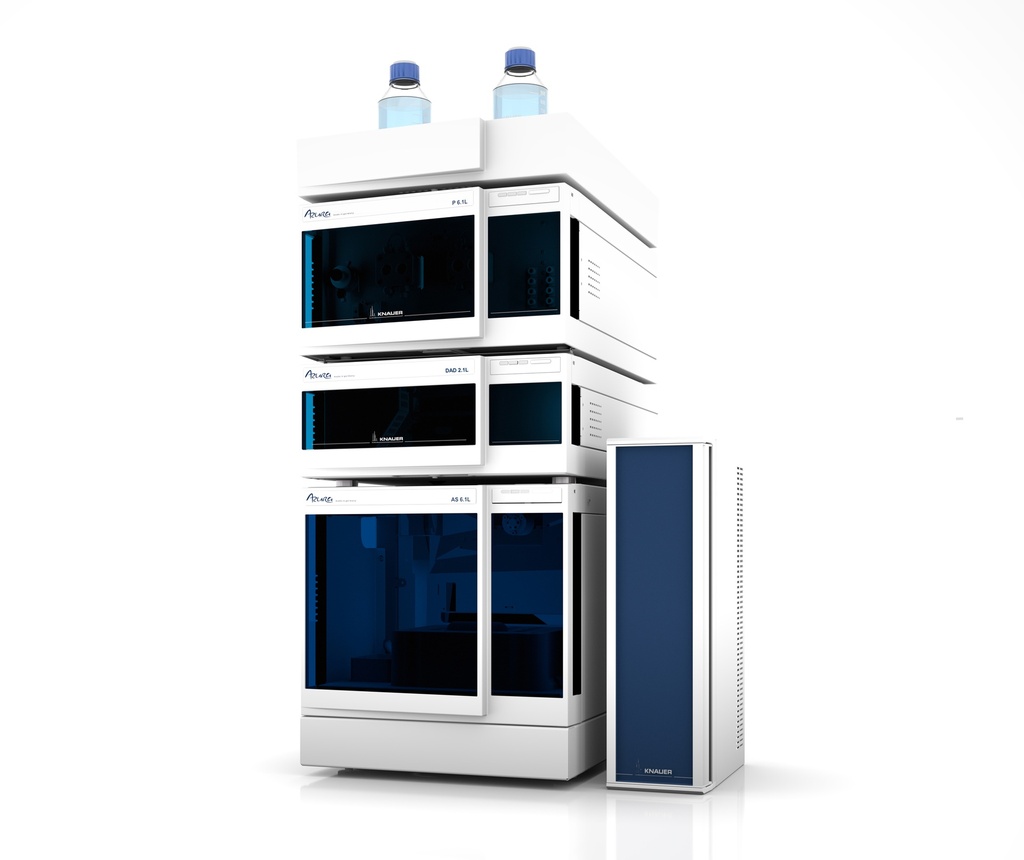

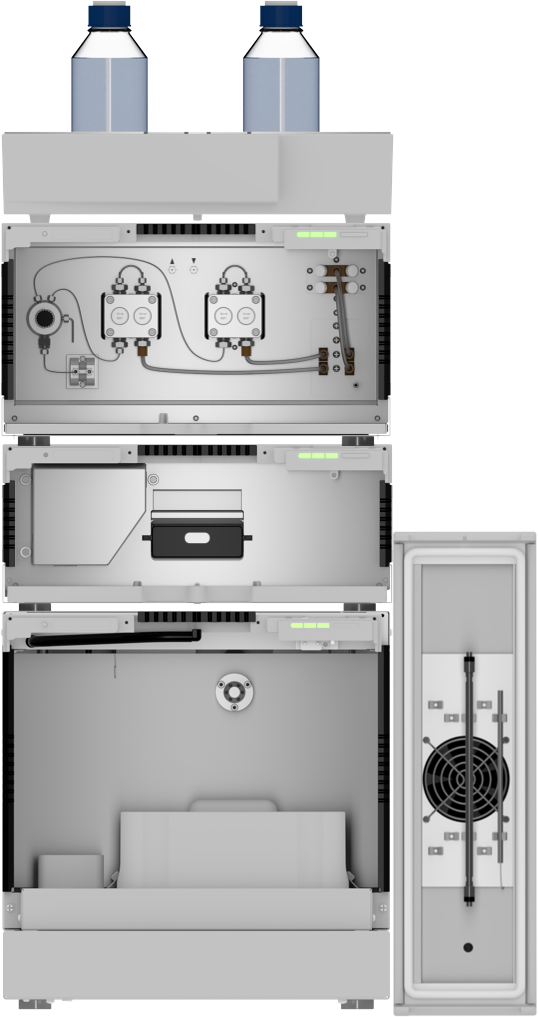

KNAUER AZURA HPLC 862 bar system with binary pump and DAD
Included system components: Eluent tray E 2.1L, Pump P 6.1L HPG, Autosampler AS 6.1L, Column thermostat CT 2.1, Diode array detector DAD 2.1L with 10 mm pressure proof flow cell, ClarityChrom Software and PDA extension, Accessories and tools
The complete solution for your daily HPLC routine. Ideally suited for a wide range of applications.
Eluent deliveryThe Pump P6.1L with a HPG configuration features a solvent selection valve to set up to 4 solvents to the system of which two can be blended simultaneously. The internal degassing unit will prevent air bubbles in the system. Every P 6.1L comes with an attached mixing chamber, which can be changed to a larger volume depending on the applications needs.
Sample Injection
The Autosampler AS 6.1L can inject 0.1 – 5000 µl to have a large flexibility. Using standard vials or two microtiter plates will give you a maximum sample capacity of up to 768 samples or 108 vials.
Column thermostating
The Column thermostat CT 2.1 is suitable for column thermostatization above and below room temperature. The instrument operates with a microprocessor controlled Peltier element for exact temperature settings.
Chromatography data system
KNAUER ClarityChrom® is a powerful, yet easy-to-use chromatography software for instrument control, data acquisition and data processing. It is an economical solution compared to other more complex chromatography software while still offering FDA 21 CFR Part 11 compliance.
Detection
The Detector DAD 2.1L features a novel light path and flow cell architecture with improved handling and excellent performance. This Diode array detector can be used in the wavelength range of 190-700 nm.
Internal Reference:
986 503 200
Technical Data
| Eluent delivery | P 6.1L 862 bar HPG |
| Sample Injection | AS 6.1L |
| Detection | DAD 2.1L |
| Chromatography Software CDS | ClarityChrom |
| Column Tempering | Column Thermostat CT 2.1 |
